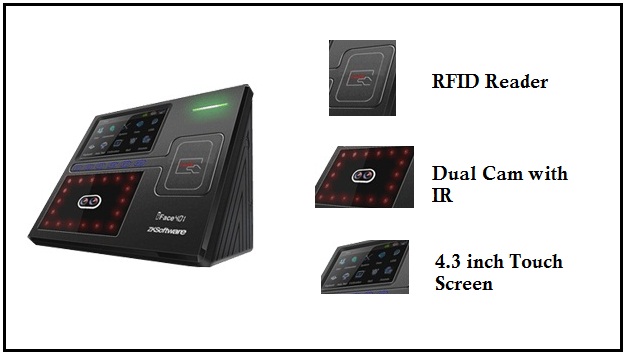

Face Reader iface 31F (Face + RFID)
iFace31F multi-biometric identification time attendance and access control terminal adopts ZKSoftware's latest ZEM600 platform with ZK Face 7.0 algorithm and large capacity memory. iFace series integrated 630MHz high speed ZK Multi-Bio processor and high definition infrared camera enables user identification in the dark environment. Face and fingerprint multi-biometric identification method will be applicable more widely. All operations of iFace are designed to be performed on the 4.3 inches TFT touch screen. Multi-model communications includes RS232/485, TCP/IP, optional WiFi or GPRS. Optional built-in 2000 mAh battery eliminates the trouble of power-failure.
Technical Specification
- Identification methods include Face, RFID and Password
- Elegant ergonomic design
- 4.3'' TFT touch screen is user-friendly and very intuitive
- 6 user-defined function keys
- Way of communication:RS232/RS485,TCP/IP, USB-Disk

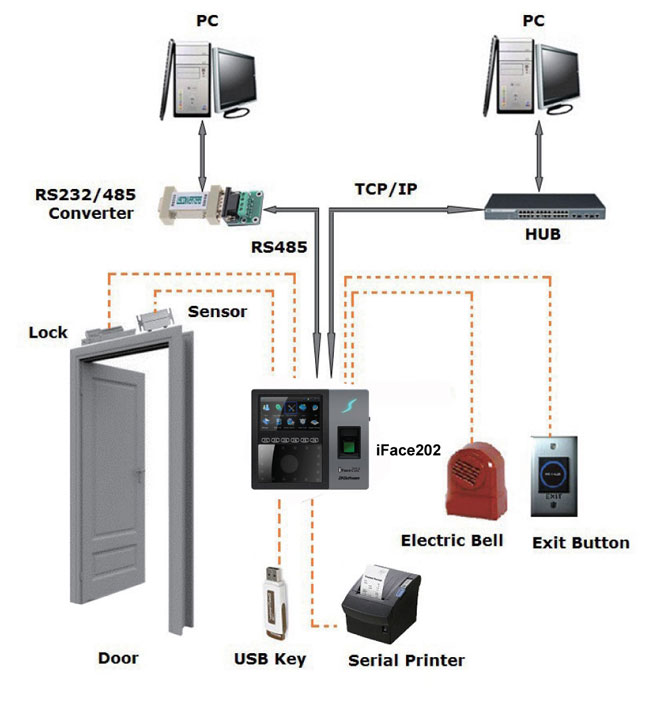

- Contact relays for door access control (wires to door strike or 3rd party panel)
- Optional extendable scheduled-bell
- Infra-red optical system enables user-identification in poorly lit environments
- Optional built-in battery backup provides approx 4 hours continuous operation.
- Optional built-in wireless Wi-Fi or GPRS for wireless communication.
- Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell.
- Wiegand Output for connections to 3rd party access control panels.
| Technical Specification : |
| CPU |
ZK Multi-Bio CPU 630 MHz |
| Memory |
256M Flash, 64M SDRAM |
| Hardware Platform |
ZEM600 Multi-Medium Development Platform |
| Fingerprint Sensor |
None |
| Camera |
High Resolution Infrared Camera |
| Display |
4.3'' TFT touch screen |
| Face capacity |
1200/3000 |
| Fingerprint capacity |
None |
| Card capacity |
10,000 |
| Logs capacity |
100,000 |
| Algorithm Version |
ZK Face 7.0 |
| 2000mAh backup battery |
Optional |
| Communication |
TCP/IP,RS232/485 |
| USB-HOST |
Two USB-Host |
| Wireless Wi-Fi |
Optional |
| Time attendance Standard functions |
ID Card(302 Optional), Automatic Status Switch, Self-Service Query, Work Code, T9 input, 9 digit user ID, DLST |
| Access control interfaces for |
3rd party electric lock, door sensor, exit button |
| Wiegand Signal |
Output |
| Optional functions |
serial printer, Mifare card, Extendable Scheduled-bell, Short Massage, Web-server, GPRS |
| Power supply |
12V3A |
| Verification Speed |
≤2 sec |
| Operating temp |
0' - 45 ' |
| Operating Humidity |
20%-80% |
| Dimension(W×H×D) |
193.6×147.6×101 mm |
| Gross Weight |
1.8 kg |
|
