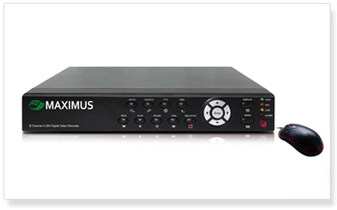

MD08-P

  • 8 Channel BNC, Embedding Linux OS
  • USB,Moved Hard Disk ,USB Writer,Network
dvr




Technical Specification :
  Model MD08-P
System Format :
Master processor :
O.S. :
System resources :
H.264 main profile
Technical grade embedded micro controller
Embedded Linux operation
Pentaplex Function
Control Mode Operation interface : 16bit true color graphical operation interface, support mouse operation, Remote Operation, Front Panel Operation & Network Operation
Video Video standard :

Monitoring quality :

Playback quality :


Code capacity :


Motion detection :
PAL (625TVLine, 50fps); NTSC (525TVLine,60fps)
PAL, D1 (704x576); NTSC, D1 (704x480)

PAL, 100fps, CIF (352x288); NTSC, 120fps, CIF (352x240) PAL, 100fps, D1 (704×576); NTSC, 120fps (704×480), D1.
PAL, CIF (352x288); NTSC, CIF (352x240)(real-time) PAL,D1 (704×576);NTSC,D1 (704×480) (real-time)

64(8X8) surveyed area can be set in everyone frame; Multilevel sensitivity can be set
Audio Audio compression :

VoIP :
G711A

Yes
Recording and playback Recording mode :

Local playback :


Playback Function :


Recording search :
Manual/alarm/motion detection/timing

Single channel, multi channel playback (max 4 channel simultaneously)

Play, Pause, Stop, Rewind, Fast Forward, Slow Forward,Next file, Repeat Playback, Full Screen

Time point, calendar, event, channel
Display Picture display :
VGA Resoution :

Simultaneous View (TV/VGA) :
1/4 frame
800*600, 1024*768, 1280*720, 1280*1024, 1360*768, 1440*900

yes
Interface Video input :
Video output :
Audio input :
Audio output :
Alarm input :
Alarm output :
Ethernet :
PTZ :
USB :
HDD :
8 channel BNC
1channel BNC (1.0Vp-p, 75 ohm), 1channel VGA output
8channel RCA, 200-2800mV, 30K ohm
1channel RCA, 200-3000mV, 5K ohm
8channel
1channel
RJ45 10M/100M self-adapting Ethernet port,
1 x RS485
2 x USB interface
1 x SATA supports
Network Network Services :

Network Remote Connection :
PPPOE, NTP, EMAIL, IPFILTER, FTP, DDNS, ARSP, ALARM SERVER, MOBILE MONITOR, UPNP

I.E. viewing, and supports Windows mobile, Symbian, iPhone, Black Berry and Android cell phone viewing; also Central Management System (CMS)
Others Power :
Dissipation :
Working temperature:
Working humidity :
Dimension :
Weight :
12V/4.00A Power adaptor
<10W(w/o HDD)
0 degree +- 55 degree
10% -90 %
Color box: 410*415*135mm, DVR: 353*325*61 mm Carton: 580*380*340mm, 4pcs/carton
3.7KG/carton
